型号：80JASM510230K-17BCQ-SC

名称：High voltage servo motor

◼ The maximum overload capacity of the motor is 3 times
◼ Stable low speed, low cogging torque
◼ High precision, using 17-bit encoder
◼ Motor high performance, high reliability, high efficiency
◼ Rated speed 3000r/min, maximum speed 4500r/min

在线购买 →

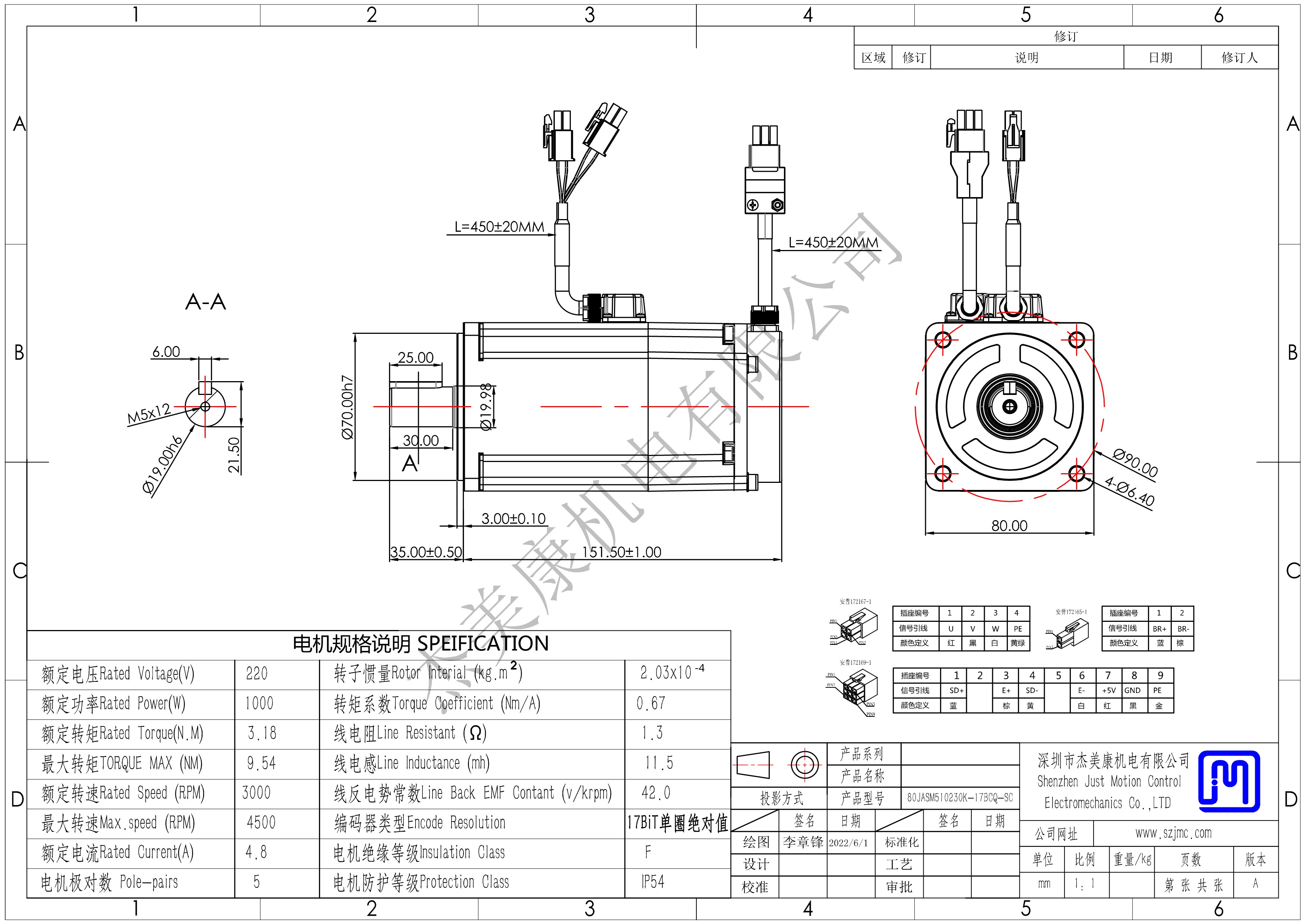

Specificaiton Dimension 配套相关下载

Attributes	Unit	Value
Base size	mm	80
Length of motor	mm	151.5
Diameter of shaft	mm	19
Length of shaft	mm	35
Rated voltage	V	220
Rated power	W	1000
Rated torque	N.m	3.18
Max torque	N.m	9.54
Rated speed	rpm	3000
Max speed	rpm	4500
Rated current	A	4.8
Rotor inertia	kg.m²	2.03
Motor polars		5
Torque coefficient	N.m/A	0.67
Line risstance	Ω	1.3
Line inductance	Mh	11.5
Line Back EMF Constant	V rms/K rpm	42
Type of encoder		17bitSingle turn absolute value
Motor insulation class		F
Motor protection class		IP54
Certified		RoHS
