The hybrid digital stepper driver is controlled by the latest 32-bit ARM processor. This digital driver is equipped with subdivision, current and auxiliary function dial codes. Users can freely set according to their needs. The advanced drive control algo

3-phases stepper driver

  • The digital three-phase stepping driver is controlled by the latest 32-bit ARW processing. This digital driver is equipped with subdivision, current and auxiliary function dials. The motor runs accurately and stably at various speeds. Among them, the buil


产品型号 Phase Power voltage
(V)
Output current
(A)
Microstep Dimension (mm) Match motor
3DM783 3 DC(24V~60V) 2.2~8.2 2~128,5~125 118x75.5x34.75 57/60/86
3DM860H 3 DC(24V~80V)
AC(18V~60V)
2.0~8.3 1~60,2.5~50 150x97.5x52.6 60/86
3DM2060H 3 AC(80V~240V) 1.3~5.6 1~64,2.5~50 194x112.25x78.5 86/110

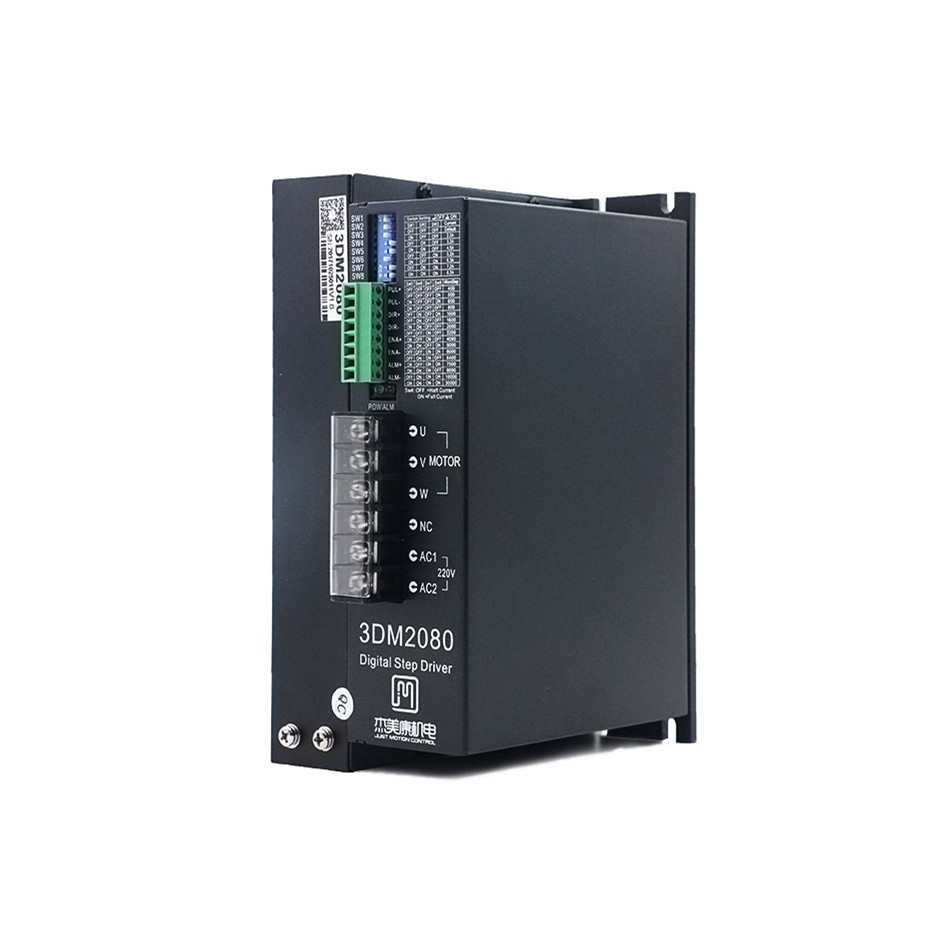

3DM2080 3 AC(80V~220V) 2.0~8.0 2~128,2.5~50 192x126.5x85 86/110/130
3DM3422 3 AC(80V~240V) 1.2~4.0 2~3000 178.3x108.2x67.9 86
3DM3722 3 AC(80V~240V) 1.2~10.0 2~3000 200x145.5x80 110/130
