model：86SN18114-460-TR15.875*xxxx-300-01

name：Screw Lead Motor

◼ Rated voltage: 4.8VDC
◼ Rated current: 6.0A
◼ Frame size: 86mm
◼ The diameter of the screw rod is 15.875mm, and the pitch is optional
◼ Screw length can be customized

online purchase →

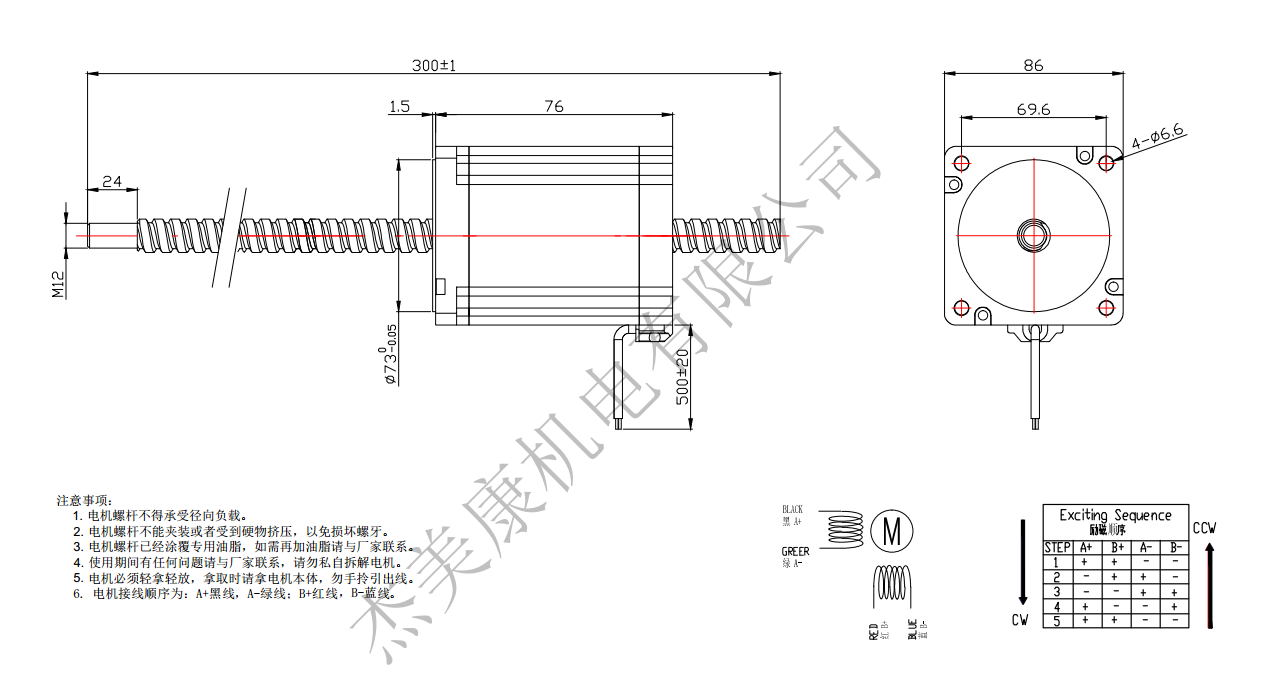

Specification Dimension Supporting facilities correlation download

Attribute	Unit	Value
Base	mm	86
Phase		2
Microstep		1.8°
Length of Motor	mm	114
Diameter	mm	15.875
Length of Screw	mm	300
Thread Lead	mm	2.54 3.175 5.08 6.35 12.7 25.4
Full Step	mm	0.0127 0.015875 0.0254 0.03175 0.0635 0.127
Voltage	V	4.8
Current	A	6.0
Risstance	Ω	0.8
Inductance	Mh	8.5
Rotor Inertia	g.cm²	2500
Holding Torque	N.m	8.5
Lead out Line		4
Working Temp		-20℃~+50℃
Temp Rise	K	80
Insolution Class		B
Certificate		RoHS
